Product Technical Specification
| Brand | Gigabyte |

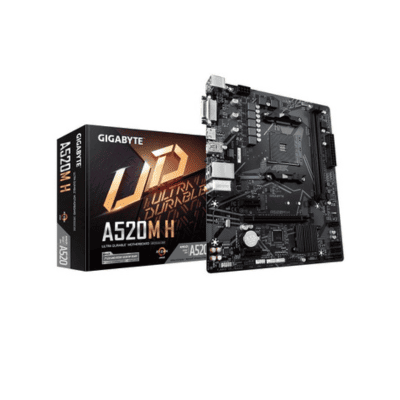

| Model | A520M H |
| Chipset | AMD A520 |
| Supported CPU | AMD Ryzenโข 5000 G-Series Processors/ AMD Ryzenโข 5000 Series Processors/ AMD Ryzenโข 4000 G-Series Processors/ AMD Ryzenโข 3000 G-Series Processors/ AMD Ryzenโข 3000 Series Processors |
| CPU Socket | AM4 |
| Memory Type | DDR4 |
| Memory MHz | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Audio | Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN Chip (1Gbps/100Mbps/1000 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB | Chipset: CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 X 24-pin ATX main Power connector 1 X 8-pin ATX 12V Power connector 1 X CPU fan header 1 X system fan header 1 X Addressable LED strip header 1 X RGB LED strip header 1 X M.2 Socket 3 connector 4 X SATA 6Gb/s connectors 1 X Front panel header 1 X front panel audio header 1 X Speaker header 1 X USB 3.2 Gen 1 header 2 X USB 2.0/1.1 header 1 X Trusted Platform Module (TPM) header (2X6 pin, for the GC-TPM2.0_S module only) 1 X Serial port header 1 X Chassis intrusion header 1 X Clear CMOS jumper |

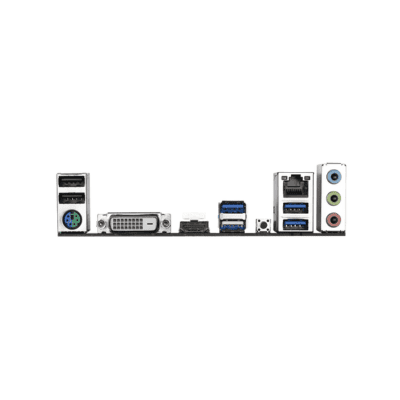

| Back panel Connectors | 1 X PS/2 keyboard/mouse port 1 X DVI-D port 1 X HDMI port 4 X USB 3.2 Gen 1 ports 2 X USB 2.0/1.1 ports 1 X Q-Flash Plus button 1 X RJ-45 ports 3 X audio jacks |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor, 24.4cm X 20.5cm |
| Warranty | 3 Years |
